CyberneticOscillator

Ehlers DSP oscillator ehlers dsp cycle momentum

Combined HighPass and SuperSmoother filters normalized by RMS.

Visual Example

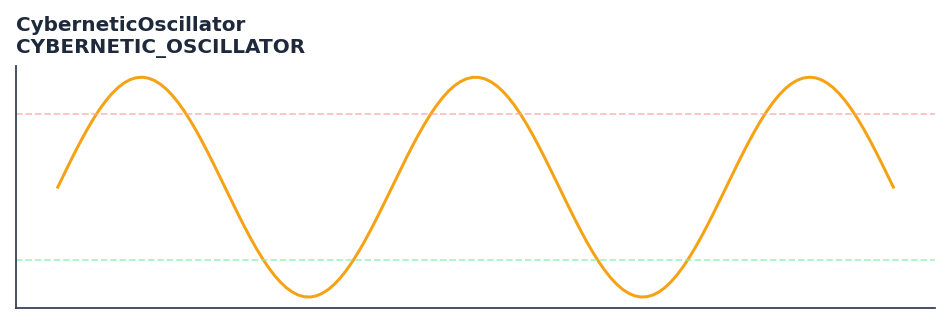

CyberneticOscillator — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The CyberneticOscillator indicator is a technical analysis tool that combined highpass and supersmoother filters normalized by rms.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use as a generalized Ehlers cycle oscillator when you need a configurable bandpass response tuned to a specific dominant cycle period.

The Cybernetic Oscillator is derived from the bandpass filter framework in Ehlers Cybernetic Analysis for Stocks and Futures (2004). By tuning the filter center frequency to the measured dominant cycle period, it extracts only the cyclical component and presents it as an oscillator ranging above and below zero.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/cybernetic_oscillator.rs):

[ HP = HighPass(Price, HPLen) ] [ LP = SuperSmoother(HP, LPLen) ] [ RMS = \sqrt{\frac{1}{N} \sum_{i=0}^{N-1} LP_{t-i}^2} ] [ CO = \frac{LP}{RMS} ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/cybernetic_oscillator.json.

Parameters

Parameter Default Description
hp_length 30 HighPass filter length
lp_length 20 LowPass (SuperSmoother) length
rms_len 100 RMS normalization length

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::CYBERNETIC_OSCILLATOR;
use quantwave_core::traits::Next;

let mut ind = CYBERNETIC_OSCILLATOR::new(30);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import CYBERNETIC_OSCILLATOR

ind = CYBERNETIC_OSCILLATOR(30)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_cyberneticoscillator(series: pl.Series) -> pl.Series:
    ind = qw.CYBERNETIC_OSCILLATOR(30)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_cyberneticoscillator, return_dtype=pl.Float64).alias("cyberneticoscillator")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/traderstipsreference/TRADERS’%20TIPS%20-%20JUNE%202025.html

Implementation: quantwave-core/src/indicators/cybernetic_oscillator.rs (CYBERNETIC_OSCILLATOR / CYBERNETIC_OSCILLATOR_METADATA). Parity: quantwave-core/tests/gold_standard/cybernetic_oscillator.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
