Cyber Cycle

Ehlers DSP cycle oscillator ehlers dsp

John Ehlers' bandpass-style cycle oscillator — isolates short-term cyclic component with dramatically less lag than classic momentum tools.

Visual Example

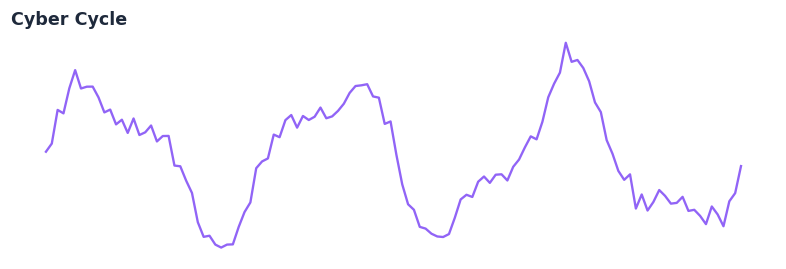

Cyber Cycle — annotated preview mapping to core implementation

Synthetic cycle with Cyber Cycle and trigger line. Generated via docs/generate_all_previews.py; maps to core Next<f64> → (cycle, trigger).

Description

Cyber Cycle applies a symmetrical 4-bar FIR smoother and a second-order IIR bandpass to extract the cyclic component of price. The trigger line is the cycle delayed one bar — crossovers produce timing signals with less derivative noise than MACD-style constructions.

Use Cyber Cycle when you need:

  • Cycle timing — entries/exits around cycle turns in mean-reverting regimes
  • Regime gating — suppress cycle trades when Hurst or trend tools show persistence
  • ML features — rich struct output via .ta.features.cyber_cycle() (cycle, trigger, momentum, signal)
  • Ehlers stacks — chain with Roofing Filter, SuperSmoother, Instantaneous Trendline

QuantWave sources the math from Ehlers' Cybernetic Analysis for Stocks and Futures (2004), Chapter 4. The streaming indicator returns (cycle, trigger); the feature extractor adds momentum and signal fields for ML pipelines.

Formula / Specification

Source: John Ehlers, Cybernetic Analysis for Stocks and Futures (2004), Ch. 4

Let length control \(\alpha = 2 / (length + 1)\). Four-bar smooth:

\[ \text{Smooth}_t = \frac{X_t + 2X_{t-1} + 2X_{t-2} + X_{t-3}}{6} \]

Cyber Cycle recurrence (bandpass isolation):

\[ CC_t = \left(1 - \frac{\alpha}{2}\right)^2 (\text{Smooth}_t - 2\text{Smooth}_{t-1} + \text{Smooth}_{t-2}) + 2(1-\alpha) CC_{t-1} - (1-\alpha)^2 CC_{t-2} \]
\[ \text{Trigger}_t = CC_{t-1} \]

Implementation: quantwave-core/src/indicators/cyber_cycle.rs
Feature struct: quantwave-core/src/features/cyber_cycle.rs (momentum, signal fields)

Parameters

Parameter Default Description
length 14 Controls \(\alpha\); higher = smoother, more lag

Ehlers examples often use 10–20 on daily data; intraday may need shorter lengths with Roofing pre-filtering.

Usage Examples

Polars features (ML / multi-output)

import polars as pl
import quantwave  # registers LazyFrame.ta.features

df = (
    pl.read_csv("ohlcv.csv")
    .lazy()
    .ta.features()
    .cyber_cycle(14)
    .collect()
)
# Struct column "cyber_cycle" — unnest for cycle, trigger, momentum, signal

Streaming indicator (cycle + trigger)

import quantwave as qw

cc = qw.streaming_class("cyber_cycle")(length=14)
for price in closes:
    out = cc.next(price)
    # out.cycle, out.trigger (or tuple depending on binding)

Streaming (Rust)

use quantwave_core::indicators::cyber_cycle::CyberCycle;
use quantwave_core::traits::Next;

let mut cc = CyberCycle::new(14);
for price in &closes {
    let (cycle, trigger) = cc.next(*price);
}

Feature matrix (batch research)

import quantwave as qw

matrix = qw.build_feature_matrix(df, specs=[
    qw.FeatureSpec("cyber_cycle", {"length": 30}),
    qw.FeatureSpec("hurst", {"window": 100}),
])

See ML Features → Backtest E2E for parity-proof pipeline.

Edge Cases & Limitations

  • Trending markets: Bandpass assumes cyclic component exists — trending data produces drift; gate with trend/regime filters.
  • Warm-up: FIR + IIR state needs several bars; early outputs are unstable.
  • Noisy inputs: Pre-filter with Roofing or SuperSmoother on very choppy series.
  • Not a standalone system: Pair with structure (Market Structure) or regime tools.

Boundary Behavior

Condition Behavior
Warm-up Leading bars reflect partial filter state.
length > series length Insufficient data for stable cycle extraction.
NaN in close NaN propagates through filter chain.
Invalid params Non-positive length raises ValueError.

Sources & References

Primary source: Ehlers (2004) Cybernetic Analysis for Stocks and Futures, Chapter 4

Implementation: quantwave-core/src/indicators/cyber_cycle.rs (CyberCycle / CYBER_CYCLE_METADATA)

Parity: quantwave-core/tests/test_ml_feature_validation.rs — batch vs streaming, no look-ahead
