EhlersUltimateOscillator

Ehlers DSP oscillator ehlers dsp momentum adaptive

A highly responsive oscillator created from the difference of two highpass filters, normalized by RMS.

Visual Example

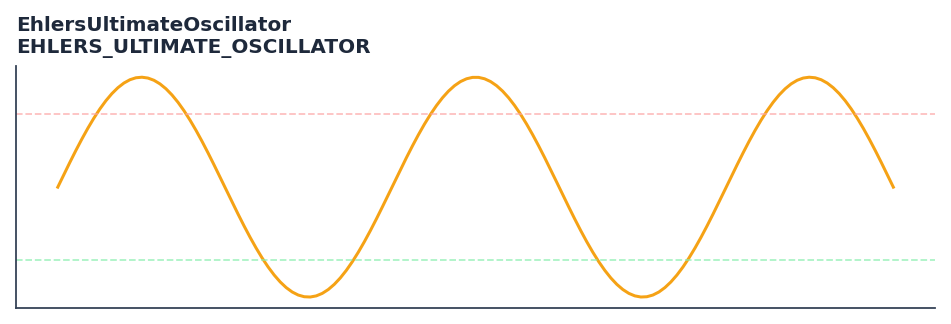

EhlersUltimateOscillator — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The EhlersUltimateOscillator indicator is a technical analysis tool that a highly responsive oscillator created from the difference of two highpass filters, normalized by rms.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use as a multi-scale momentum oscillator that combines signals from multiple cycle-aware timeframes to reduce false signals from any single period.

Ehlers Ultimate Oscillator combines the outputs of multiple cycle-synchronized oscillators operating at different dominant cycle harmonics. By averaging across scales, it reduces the likelihood of false signals that occur when any single oscillator is temporarily misaligned with the market cycle.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/ehlers_ultimate_oscillator.rs):

[ HP_1 = \text{HighPass}(Price, BandEdge \cdot Bandwidth) ] [ HP_2 = \text{HighPass}(Price, BandEdge) ] [ Signal = HP_1 - HP_2 ] [ UO = \frac{Signal}{RMS(Signal, 100)} ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/ehlers_ultimate_oscillator.json.

Parameters

Parameter Default Description
band_edge 20 Critical period (shorter period)
bandwidth 2.0 Multiplier for the longer period

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::EHLERS_ULTIMATE_OSCILLATOR;
use quantwave_core::traits::Next;

let mut ind = EHLERS_ULTIMATE_OSCILLATOR::new(20);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import EHLERS_ULTIMATE_OSCILLATOR

ind = EHLERS_ULTIMATE_OSCILLATOR(20)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_ehlersultimateoscillator(series: pl.Series) -> pl.Series:
    ind = qw.EHLERS_ULTIMATE_OSCILLATOR(20)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_ehlersultimateoscillator, return_dtype=pl.Float64).alias("ehlersultimateoscillator")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/traderstipsreference/TRADERS’%20TIPS%20-%20APRIL%202025.html

Implementation: quantwave-core/src/indicators/ehlers_ultimate_oscillator.rs (EHLERS_ULTIMATE_OSCILLATOR / EHLERS_ULTIMATE_OSCILLATOR_METADATA). Parity: quantwave-core/tests/gold_standard/ehlers_ultimate_oscillator.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
