HammingFilter

Ehlers DSP filter ehlers dsp windowing spectral

Hamming windowed FIR filter with pedestal.

Visual Example

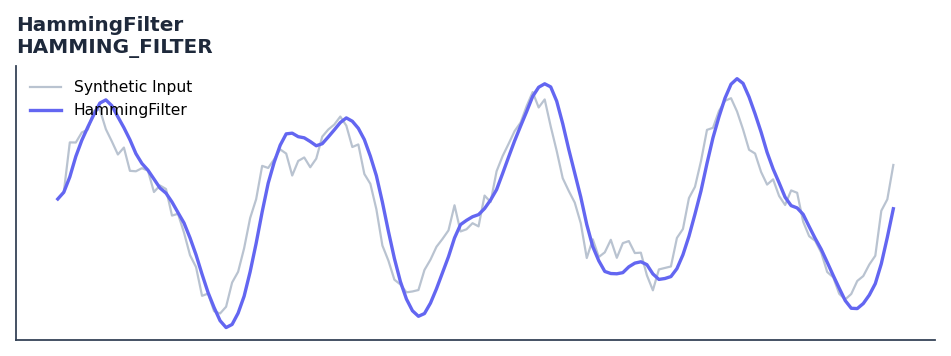

HammingFilter — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The HammingFilter indicator is a technical analysis tool that hamming windowed fir filter with pedestal.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Apply as a windowing function before DFT-based cycle detection to reduce sidelobe leakage and obtain cleaner dominant cycle estimates.

The Hamming window is a raised-cosine weighting function that reduces spectral leakage by tapering the edges of a data block. Ehlers uses it in DFT-based cycle measurement tools to prevent energy in one frequency bin from contaminating adjacent bins, improving cycle period resolution.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/hamming.rs):

[ Deg(n) = Pedestal + (180 - 2 \times Pedestal) \times \frac{n}{L-1} ] [ Coef(n) = \sin\left(\frac{Deg(n) \times \pi}{180}\right) ] [ Filt = \frac{\sum_{n=0}^{L-1} Coef(n) \cdot Price_{t-n}}{\sum Coef(n)} ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/hamming_filter.json.

Parameters

Parameter Default Description
length 20 Filter length
pedestal 10.0 Pedestal in degrees

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::HAMMING_FILTER;
use quantwave_core::traits::Next;

let mut ind = HAMMING_FILTER::new(20);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import HAMMING_FILTER

ind = HAMMING_FILTER(20)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_hammingfilter(series: pl.Series) -> pl.Series:
    ind = qw.HAMMING_FILTER(20)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_hammingfilter, return_dtype=pl.Float64).alias("hammingfilter")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/traderstipsreference/TRADERS’ TIPS - SEPTEMBER 2021.html

Implementation: quantwave-core/src/indicators/hamming.rs (HAMMING_FILTER / HAMMING_FILTER_METADATA). Parity: quantwave-core/tests/gold_standard/hamming_filter.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
