Laguerre Filter

Ehlers DSP filter ehlers dsp smoothing laguerre

A trend-following filter that excels at smoothing long-wavelength components using Laguerre polynomials and an UltimateSmoother base.

Visual Example

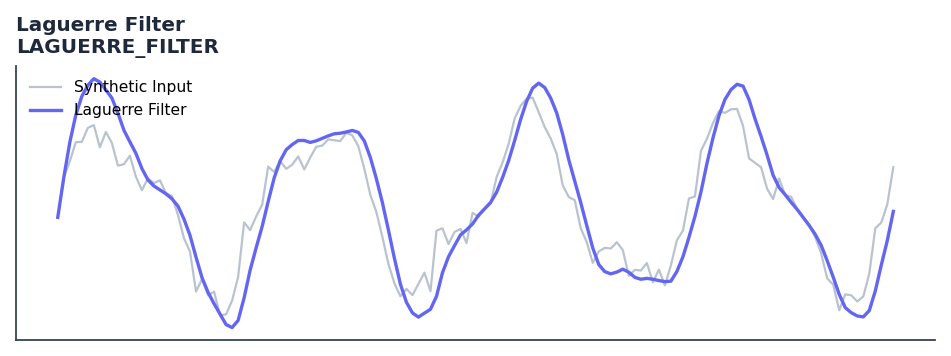

Laguerre Filter — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The Laguerre Filter indicator is a technical analysis tool that a trend-following filter that excels at smoothing long-wavelength components using laguerre polynomials and an ultimatesmoother base.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use as a low-lag smoothing filter with only 4 elements of state. Ideal when memory-efficiency matters or when a highly responsive smoother for real-time streaming is needed.

Ehlers introduces Laguerre filters in Cybernetic Analysis (2004), noting they achieve the response of much longer conventional filters using only four coefficients. The single gamma parameter controls the trade-off between lag and smoothness.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/laguerre_filter.rs):

[ L_0 = UltimateSmoother(Close, Length) ] [ L_1 = -\gamma L_{0,t-1} + L_{0,t-1} + \gamma L_{1,t-1} ] [ ... ] [ Laguerre = (L_0 + 4L_1 + 6L_2 + 4L_3 + L_5) / 16 ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/laguerre_filter.json.

Parameters

Parameter Default Description
length 40 UltimateSmoother period
gamma 0.8 Smoothing factor (0.0 to 1.0)

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::LAGUERRE_FILTER;
use quantwave_core::traits::Next;

let mut ind = LAGUERRE_FILTER::new(40);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import LAGUERRE_FILTER

ind = LAGUERRE_FILTER(40)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_laguerre_filter(series: pl.Series) -> pl.Series:
    ind = qw.LAGUERRE_FILTER(40)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_laguerre_filter, return_dtype=pl.Float64).alias("laguerre_filter")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/traderstipsreference/TRADERS%E2%80%99%20TIPS%20-%20JULY%202025.html

Implementation: quantwave-core/src/indicators/laguerre_filter.rs (LAGUERRE_FILTER / LAGUERRE_FILTER_METADATA). Parity: quantwave-core/tests/gold_standard/laguerre_filter.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
