Roofing Filter

Ehlers DSP filter ehlers dsp cycle high-pass low-pass

Combines a 2-pole HighPass filter and a SuperSmoother to isolate specific cyclic components in the tradable frequency band while removing both low-frequency trend drift and high-frequency noise.

Visual Example

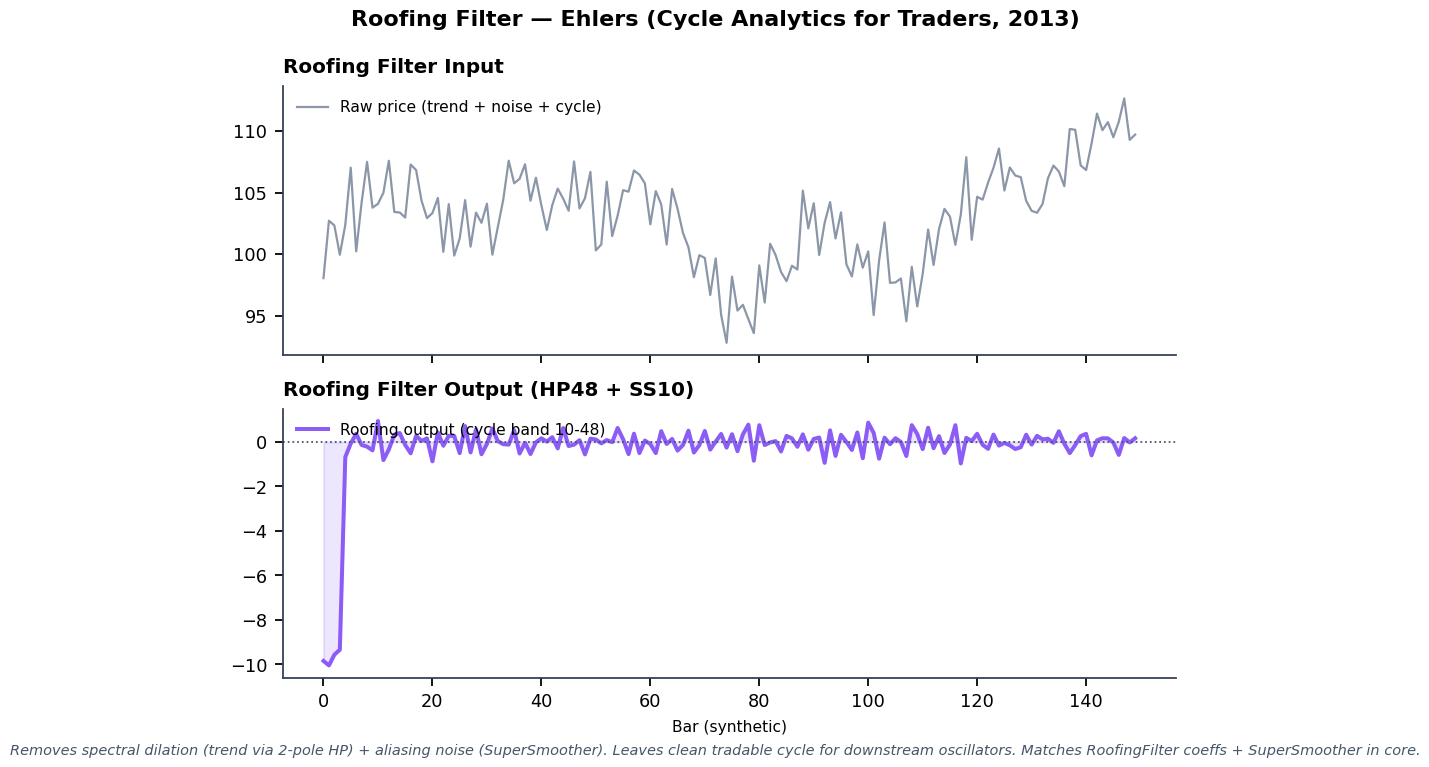

Roofing Filter: raw price (gray) containing strong trend, high-frequency noise, and a clear ~28-bar cycle. The Roofing output (purple) is a clean, zero-centered oscillation containing only the desired cycle band. Shaded region and annotations mark the HP trend removal and SS noise removal stages.

Synthetic ideal: low-frequency trend + high-frequency noise + tradable cycle (28/41 bars). After 2-pole HP (hp_period=48) + SuperSmoother (ss_period=10) only the cycle band remains. Matches the exact coefficient derivation and state in quantwave-core/src/indicators/roofing_filter.rs. Generated 2026-05-31 IST via docs/gen_indicator_previews.py.

Description

The Roofing Filter is a bandpass preprocessor designed by Ehlers to solve the "spectral dilation" problem — the fact that raw price contains energy across many frequencies, causing oscillators to produce unreliable signals. By first applying a 2-pole high-pass filter tuned to remove periods longer than hp_period (default 48), the dominant trend is eliminated. A subsequent SuperSmoother then removes periods shorter than ss_period (default 10). The result is a clean, stationary signal containing only the 10–48 bar cycle band that most discretionary and systematic traders actually trade.

Feed the Roofing output directly into Cyber Cycle, Stochastic, RSI, or any other oscillator for dramatically cleaner crossovers and divergences.

Formula / Specification

Coefficient derivation and recurrence (exact):

High-pass (hp_period):

angle = 0.707 * 2π / hp_period
α1 = (cos(angle) + sin(angle) - 1) / cos(angle)
hp_c1 = (1 - α1/2)²
hp_c2 = 2(1 - α1)
hp_c3 = -(1 - α1)²
HP = hp_c1*(Price - 2*Price[t-1] + Price[t-2]) + hp_c2*HP[t-1] + hp_c3*HP[t-2]

SuperSmoother stage on HP (ss_period):

a1 = exp(-1.414π / ss_period)
ss_c2 = 2*a1*cos(1.414π / ss_period)
ss_c3 = -a1²
ss_c1 = 1 - ss_c2 - ss_c3
Filt = ss_c1*(HP + HP[t-1])/2 + ss_c2*Filt[t-1] + ss_c3*Filt[t-2]

Parameters

Parameter Default Description
hp_period 48 High-pass critical period. Larger values remove more of the long-term trend (wider bandpass from below).
ss_period 10 SuperSmoother critical period. Smaller values allow shorter cycles through (wider bandpass from above). Typical tradable band is ~10–48 bars.

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::RoofingFilter;
use quantwave_core::traits::Next;

let mut rf = RoofingFilter::new(48, 10);
for price in prices {
    let cycle = rf.next(price);
    // cycle is now band-limited; feed to oscillator or use for cycle timing
}

Streaming (Python)

from quantwave import RoofingFilter

rf = RoofingFilter(48, 10)
for price in prices:
    cycle = rf.next(price)
    ...

Polars Batch (Python — primary research / feature surface)

import polars as pl
import quantwave as qw

df = (
    pl.read_csv("ohlcv.csv")
    .lazy()
    .with_columns([
        pl.col("close").ta.roofing_filter(hp_period=48, ss_period=10).alias("roof"),
    ])
    .collect()
)

All surfaces are bit-identical (enforced by the universal Next<T> trait and proptests).

Edge Cases & Limitations

  • First 3 bars return 0 (insufficient history for the 2nd-difference HP).
  • The filter is a linear IIR; on extremely gappy or zero-volume data the internal state can produce transient artifacts (rare in practice).
  • Choosing hp_period too small removes part of the tradable cycle you wanted to keep.
  • The output is zero-mean by design; do not expect it to carry absolute price level information.
  • Excellent preprocessing step before any bounded oscillator or ML label that cares about cyclic turning points.
  • No look-ahead bias.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: John Ehlers, Predictive Indicators for Effective Trading Strategies (2013) / Cycle Analytics for Traders (2013). PDF reference: references/Ehlers Papers/implemented/PredictiveIndicators.pdf.

Implementation Provenance: quantwave-core/src/indicators/roofing_filter.rs. The exact α1 derivation and two-stage recurrence (HP then SS) above is the mathematical source of truth. Full state machine + proptests in the file; Next<f64> parity contract in traits.rs.

Visual: Generated 2026-05-31 IST via docs/gen_indicator_previews.py using synthetic multi-frequency price that exercises the precise bandpass behavior.

Additional Context: Widely implemented in MQL5 Ehlers libraries and TradingView scripts under the same name.
