Ultimate Channel

Ehlers DSP channel volatility ehlers adaptive breakout

A Keltner-style channel using UltimateSmoothers for both the center line and the volatility range to minimize lag.

Visual Example

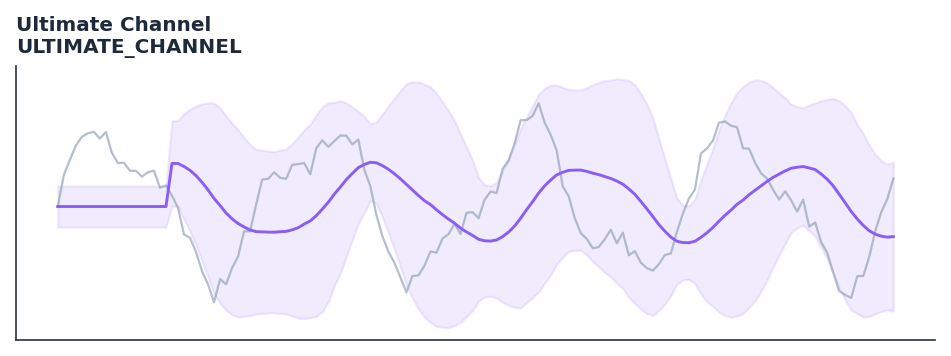

Ultimate Channel — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The Ultimate Channel indicator is a technical analysis tool that a keltner-style channel using ultimatesmoothers for both the center line and the volatility range to minimize lag.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use as a dynamic price channel whose width scales with the current dominant cycle amplitude, providing adaptive support and resistance levels for breakout trading.

The Ultimate Channel uses the measured dominant cycle amplitude to set channel width, analogous to Keltner Channels but cycle-aware rather than ATR-based. When price breaks beyond the channel boundary, it signals that cycle amplitude has expanded enough to suggest a genuine directional move.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/ultimate_channel.rs):

[ TH = \max(High, Close_{t-1}) ] [ TL = \min(Low, Close_{t-1}) ] [ STR = UltimateSmoother(TH - TL, STRLength) ] [ Center = UltimateSmoother(Close, Length) ] [ Upper = Center + NumSTRs \times STR ] [ Lower = Center - NumSTRs \times STR ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/ultimate_channel.json.

Parameters

Parameter Default Description
length 20 Center line smoothing period
str_length 20 Smooth True Range (STR) period
num_strs 1.0 Channel width multiplier

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::ULTIMATE_CHANNEL;
use quantwave_core::traits::Next;

let mut ind = ULTIMATE_CHANNEL::new(20);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import ULTIMATE_CHANNEL

ind = ULTIMATE_CHANNEL(20)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_ultimate_channel(series: pl.Series) -> pl.Series:
    ind = qw.ULTIMATE_CHANNEL(20)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_ultimate_channel, return_dtype=pl.Float64).alias("ultimate_channel")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/Ehlers%20Papers/UltimateChannel.pdf

Implementation: quantwave-core/src/indicators/ultimate_channel.rs (ULTIMATE_CHANNEL / ULTIMATE_CHANNEL_METADATA). Parity: quantwave-core/tests/gold_standard/ultimate_channel.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
