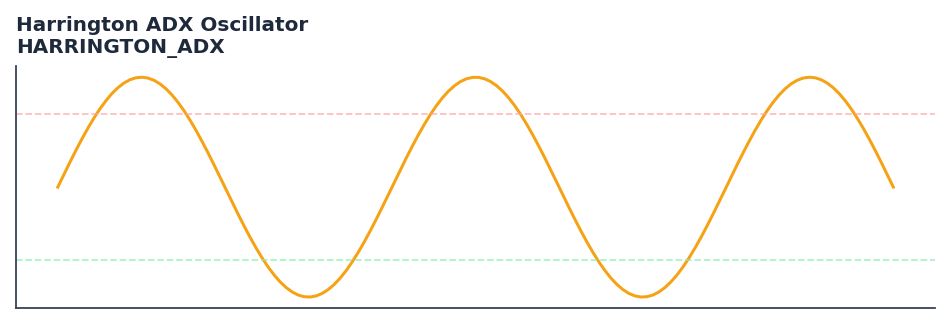

Harrington ADX Oscillator
An oscillator variant of the ADX where the sign reflects trend direction determined by DMI+ and DMI-.
Usage
The oscillator is positive when DMI+ > DMI- and negative when DMI- > DMI+. The magnitude represents trend strength (ADX). Thresholds at 15 and 40 are often used to identify trend initiation and overextended states.
Background
While originally created by Wilder, this revisualization by Harrington transforms the unipolar ADX into a bipolar oscillator. This allows for simultaneous identification of trend strength and direction in a single histogram display, simplifying the interpretation of complex directional movement data.
Parameters
adx_length(default: 10): Wilder's ADX periodadx_smooth_length(default: 1): SMA period for DMI components smoothing
Formula
[ TR = \max(H-L, |H-C_{t-1}|, |L-C_{t-1}|) ] [ +DM = (H-H_{t-1} > L_{t-1}-L) \text{ and } (H-H_{t-1} > 0) ? H-H_{t-1} : 0 ] [ -DM = (L_{t-1}-L > H-H_{t-1}) \text{ and } (L_{t-1}-L > 0) ? L_{t-1}-L : 0 ] [ +DI = 100 \cdot \frac{EMA(+DM, 1/L)}{EMA(TR, 1/L)} ] [ -DI = 100 \cdot \frac{EMA(-DM, 1/L)}{EMA(TR, 1/L)} ] [ DX = 100 \cdot \frac{|+DI - -DI|}{+DI + -DI} ] [ ADX = EMA(DX, 1/L) ] [ Result = (SMA(+DI, S) \ge SMA(-DI, S)) ? ADX : -ADX ]
