TRIX

Classic momentum oscillator smoothing classic

A momentum oscillator that shows the percent rate of change of a triple exponentially smoothed moving average.

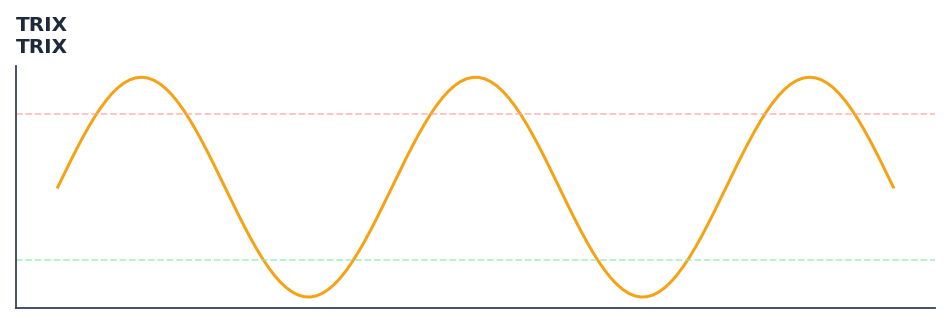

Visual Example

TRIX — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The TRIX indicator is a technical analysis tool that a momentum oscillator that shows the percent rate of change of a triple exponentially smoothed moving average.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use to filter out market noise and identify trend reversals. TRIX crossings of the zero line or a signal line can provide trade entries.

Developed by Jack Hutson in the early 1980s, TRIX is a powerful momentum oscillator that effectively filters out minor price fluctuations. By triple-smoothing an EMA, it emphasizes the underlying trend and provides a clear signal when the trend changes direction. — StockCharts ChartSchool

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/momentum.rs):

\[ TRIX = \frac{EMA3_t - EMA3_{t-1}}{EMA3_{t-1}} \times 100 \]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/trix.json.

Parameters

Parameter Default Description
timeperiod 15 Smoothing period

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::TRIX;
use quantwave_core::traits::Next;

let mut ind = TRIX::new(15);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import TRIX

ind = TRIX(15)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").ta.trix(15).alias("trix")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Warm-up: first 15 bars may return NaN or partial state per implementation.
  • Parameter sensitivity: smaller periods increase noise; larger periods increase lag.
  • Sudden gaps or bad ticks can distort rolling windows — consider pre-filtering.
  • Single-series indicators ignore volume unless otherwise documented.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; streaming and Polars batch paths are bit-identical.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://www.investopedia.com/terms/t/trix.asp

Implementation: quantwave-core/src/indicators/momentum.rs (TRIX / TRIX_METADATA). Parity: quantwave-core/tests/gold_standard/trix.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
