Reversion Index

Ehlers DSP mean-reversion oscillator ehlers cycle

A mean-reversion oscillator that normalizes price changes by their absolute magnitude and applies SuperSmoother filtering.

Visual Example

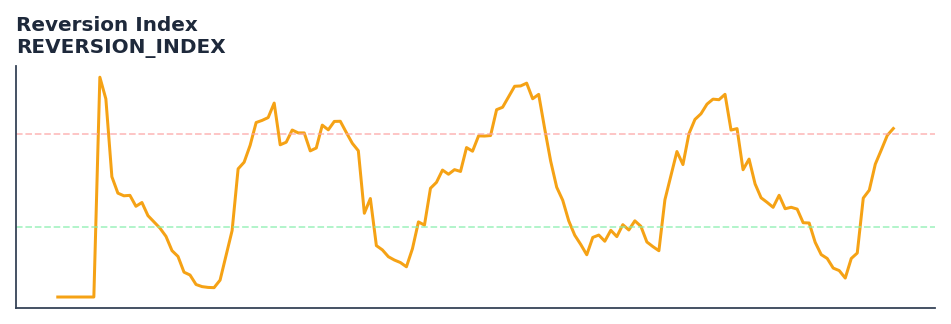

Reversion Index — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The Reversion Index indicator is a technical analysis tool that a mean-reversion oscillator that normalizes price changes by their absolute magnitude and applies supersmoother filtering.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use to identify mean-reversion opportunities when price has deviated significantly from its cycle trend. High index values signal overextended moves ripe for reversal.

Ehlers Reversion Index measures how far price has deviated from its Instantaneous Trendline in units of cycle amplitude. Because it normalizes by the current cycle energy, the index provides consistent overbought/oversold thresholds regardless of the absolute price level or volatility regime.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/reversion_index.rs):

[ \Delta_t = \text{Close}t - \text{Close} ] [ \text{Ratio} = \frac{\sum_{i=0}^{L-1} \Delta_{t-i}}{\sum_{i=0}^{L-1} |\Delta_{t-i}|} ] [ \text{Smooth} = SuperSmoother(\text{Ratio}, 8) ] [ \text{Trigger} = SuperSmoother(\text{Ratio}, 4) ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/reversion_index.json.

Parameters

Parameter Default Description
length 20 Summation period (approx. half dominant cycle)

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::REVERSION_INDEX;
use quantwave_core::traits::Next;

let mut ind = REVERSION_INDEX::new(20);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import REVERSION_INDEX

ind = REVERSION_INDEX(20)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_reversion_index(series: pl.Series) -> pl.Series:
    ind = qw.REVERSION_INDEX(20)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_reversion_index, return_dtype=pl.Float64).alias("reversion_index")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/traderstipsreference/TRADERS%E2%80%99%20TIPS%20-%20JANUARY%202026.html

Implementation: quantwave-core/src/indicators/reversion_index.rs (REVERSION_INDEX / REVERSION_INDEX_METADATA). Parity: quantwave-core/tests/gold_standard/reversion_index.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
