Ultimate Bands

Ehlers DSP bands volatility ehlers dsp adaptive

A Bollinger-style band using UltimateSmoother for the center line and standard deviation of the price-smooth difference for width.

Visual Example

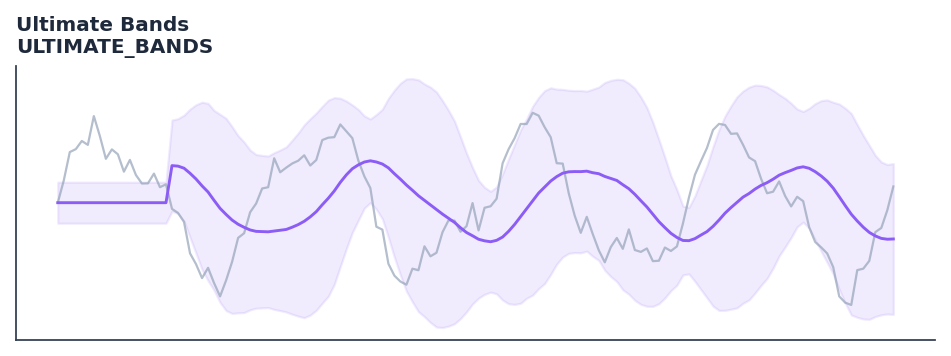

Ultimate Bands — annotated preview mapping to core implementation

Synthetic ideal per library logic. Generated 2026-06-25 IST via docs/generate_all_previews.py (reproducible; maps to core Next<T> implementation).

Description

The Ultimate Bands indicator is a technical analysis tool that a bollinger-style band using ultimatesmoother for the center line and standard deviation of the price-smooth difference for width.

This indicator is primarily used for identifying key market conditions. It provides a robust signal that can be easily integrated into both simple strategies and more complex machine learning feature pipelines. Compared to its alternatives, it offers a distinct balance of responsiveness and stability.

Traders often combine this with other metrics to confirm signals and avoid false positives during sideways market regimes. It remains a standard tool for systematic trading models.

Use as volatility bands that automatically widen during high-energy cycle phases and narrow during quiet phases. Better than fixed-multiple ATR bands in strongly cyclical markets.

Ehlers Ultimate Bands compute upper and lower price envelopes using the RMS amplitude of the dominant cycle rather than a fixed ATR multiple. This makes the bands proportional to the current cycle energy, expanding when the market is actively cycling and contracting when it enters a low-energy consolidation.

QuantWave implements this indicator via the universal Next<T> trait, guaranteeing bit-identical results between Rust streaming, Python streaming, and Polars batch (.ta() / map_batches) surfaces.

Formula / Specification

Implementation (quantwave-core/src/indicators/ultimate_bands.rs):

[ Smooth = UltimateSmoother(Close, Length) ] [ SD = \sqrt{\frac{1}{n}\sum_{i=0}^{n-1} (Close_{t-i} - Smooth_{t-i})^2} ] [ Upper = Smooth + NumSDs \times SD ] [ Lower = Smooth - NumSDs \times SD ]

Gold-standard parity vectors: quantwave-core/tests/gold_standard/ultimate_bands.json.

Parameters

Parameter Default Description
length 20 Smoothing and SD period
num_sds 1.0 Standard Deviation multiplier

Usage Examples

Streaming (Rust)

use quantwave_core::indicators::ULTIMATE_BANDS;
use quantwave_core::traits::Next;

let mut ind = ULTIMATE_BANDS::new(20);
for price in &prices {
    let value = ind.next(price);
}

Streaming (Python)

from quantwave import ULTIMATE_BANDS

ind = ULTIMATE_BANDS(20)
for price in prices:
    value = ind.next(price)

Polars Batch (Python)

import polars as pl
import quantwave as qw

def apply_ultimate_bands(series: pl.Series) -> pl.Series:
    ind = qw.ULTIMATE_BANDS(20)
    return pl.Series([ind.next(float(v)) for v in series.to_list()])

df = (
    pl.read_csv('ohlcv.csv')
    .lazy()
    .with_columns(
        pl.col("close").map_batches(apply_ultimate_bands, return_dtype=pl.Float64).alias("ultimate_bands")
    )
    .collect()
)

All surfaces are bit-identical via the single Next<T> implementation and proptests.

Edge Cases & Limitations

  • Recursive DSP filters require a warm-up period; first N bars may be unstable or raw-pass-through.
  • Designed for cyclic/mean-reverting regimes; trending markets can produce lag or drift.
  • Parameter period (or equivalent) controls cutoff — too small adds noise, too large adds lag.
  • Prefer chaining with other Ehlers tools (Roofing Filter, SuperSmoother) on noisy inputs.
  • Validated via proptests against gold-standard vectors where available.
  • No look-ahead bias; suitable for live streaming and batch feature pipelines.

Boundary Behavior

Condition Behavior
Warm-up Leading bars return NaN until warmup_bars is satisfied.
period > len When period exceeds series length, output is all NaN.
NaN inputs NaN in input propagates to output (NaN out).
Invalid params Non-positive period or missing required params raise ValueError.
Empty data Empty input returns an empty result series.

Sources & References

Primary Source: https://github.com/lavs9/quantwave/blob/main/references/Ehlers%20Papers/UltimateChannel.pdf

Implementation: quantwave-core/src/indicators/ultimate_bands.rs (ULTIMATE_BANDS / ULTIMATE_BANDS_METADATA). Parity: quantwave-core/tests/gold_standard/ultimate_bands.json

Provenance: Standards bulk upgrade 2026-06-25 IST — see docs/DOCUMENTATION_STANDARDS.md.
